Perimeter Overflow Pool: How It Works, Materials & Mistakes to Avoid

Have you ever seen a pool that looks like a mirror?

Water blends seamlessly into the edge, perfectly level with the deck, flowing evenly in every direction. No tiles sticking up. No coping. Just a clean, endless surface. These stunning installations are called perimeter overflow pools,  and they’re far more than a beautiful aesthetic.

But here’s what most people don’t know: behind that serene surface is one of the most complex pool systems you can build.

If you’re considering a perimeter overflow pool, you’re in the right place. This article explains exactly how they work, what they cost, the key engineering elements, and the most common mistakes that can sabotage the entire design. We’ll also help you decide whether this pool style is right for your project,  and what to watch for when choosing a contractor.

What Makes a Perimeter Overflow Pool Unique?

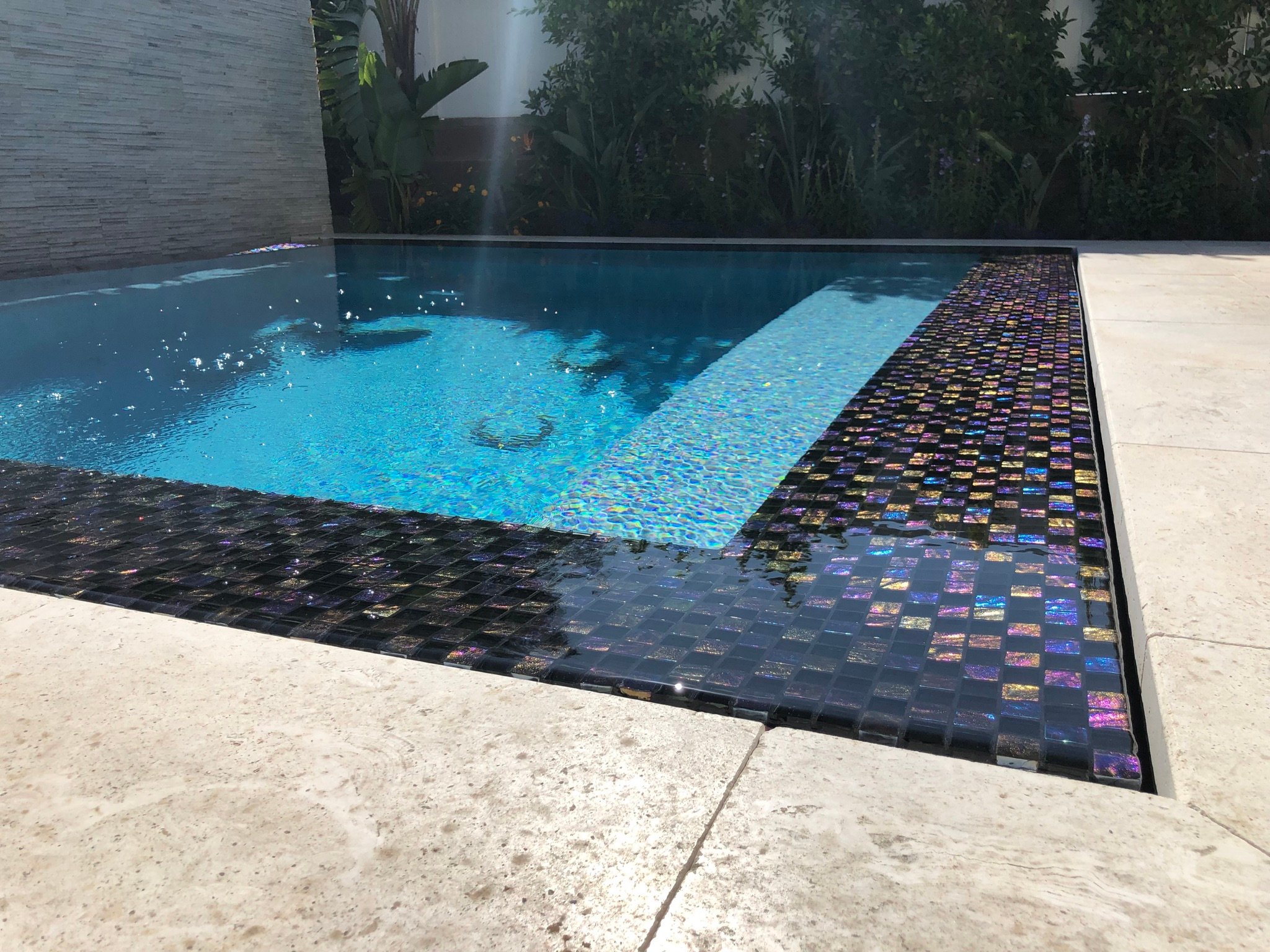

How the Seamless “Mirror” Effect Works

A perimeter overflow pool (also called a rim‑flow, slot‑overflow, or wet‑edge pool) is designed so that water continuously overflows every edge of the pool into a concealed gutter or slot. The water then travels to a collector tank (or surge tank), where it is filtered and pumped back into the main body.

This design creates the effect of a still, perfectly level surface, like a reflective mirror.

Flush vs. Raised Designs: Which Look Is Right for You?

• Flush: The water sits level with the deck. This design blends seamlessly with hardscaping.
• Raised: The water appears to float inside a “bowl” above ground — often used in spas or decorative installations.

Both can create dramatic visuals, but require different engineering approaches.

How Is This Different From an Infinity Pool?

Infinity edge pools typically overflow on one side only, often toward a scenic view. In contrast, perimeter overflow pools overflow on all four sides, making the effect much more immersive and more demanding from an engineering perspective.

How Does a Perimeter Overflow Pool Work?

Key System Components

• Perimeter Weir: The edge where water overflows.


• Gutter or Slot: Collects overflow water around the entire perimeter.


• Surge/Collector Tank: Stores displaced water before it returns to the pool.


• Circulation Pump: Moves water back into the pool.


• Backflow Prevention: Ensures water doesn’t drain backwards into the surge tank when the system shuts off.

Why Precision Engineering Matters

To achieve a consistent flow around all four edges, the perimeter must be built with extremely tight level tolerances,  often within 1/32 of an inch or less. Even slight deviations cause uneven water distribution, disrupting the mirror effect and overworking the system.

Pros and Cons of Perimeter Overflow Pools

Advantages

• Aesthetics: One of the most luxurious pool visuals available.
• Cleanliness: Continuous skimming effect helps keep water clear.
• Visual Safety: No obstruction on the surface,  ideal for full visibility.



Challenges and Considerations

• High Cost: More materials, labor, and precision = higher budget.
• Not Family‑Friendly: Splash‑out is a concern with kids playing or jumping in.
• Technical Complexity: Requires highly experienced builders and installers.

How Much Does a Perimeter Overflow Pool Cost?

Cost Factors

• Excavation & Foundation: More precise work adds labour.
• Waterproofing: Critical due to constant overflow pressure.
• Surge Tank & Pumping System: Not used in traditional pools.
• Edge Finishing: Tile or stone needs exact placement.
• Design Fees & Engineering: Essential for success.
• Permitting & Inspection: Higher scrutiny from local agencies.

General Price Range (In addition to the pool itself)

• Basic perimeter overflow pool: $150,000–$250,000+
• High‑end custom designs: $300,000–$500,000+

Cutting corners can cost more later in repairs or redesigns.

What Materials Work Best?

Tile vs. Stone at the Edge

• Tile: Sleek finish, but must be set flush and level.
• Stone: Can be ground to fit, more forgiving during leveling.

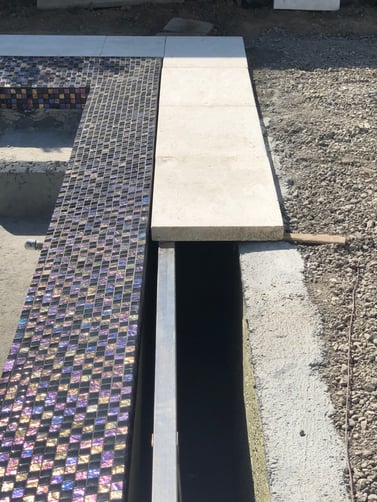

Gutters & Slots

• Grates: As crucial as the rest of the details. This is where water will flow. Some are hidden, while others are visible, and that will require careful planning and material selection.  Choose materials and grates that are Easier to clean, and consider aesthetic options.
• Slots: Cleaner look, harder to service.

Waterproofing & Structure

Use high‑quality membrane systems, and verify all edge transitions. Subtle leaks can be catastrophic over time.

Why Material Selection & Waterproofing Can Make or Break a Perimeter Overflow Pool

The Edge Is Unforgiving, and So Are the Materials

The precision required at the pool’s perimeter means you cannot use materials as an afterthought. Every material, turf, porcelain, concrete, or natural stone, comes with its own thickness, tolerance, and installation limitations. If chosen too late or inconsistently, they will throw off the edge alignment and ruin the mirror‑like effect.

Common Mistakes in Finish Material Selection

• Large‑format tiles often have subtle warps that ruin leveling across the perimeter.
• Natural stone may vary in thickness, requiring grinding or bedding; if discovered too late, it leads to edge mismatches.
• Porcelain or precast coping must be spec’d in advance to set edge elevations correctly.

If the perimeter is even ¼ inch off in a few spots, the water will overflow unevenly, and no installer can “fix” that visually later.

Materials that are too thin may also crack easily

Waterproofing Is Not the Place to Cut Corners

Many perimeter overflow systems fail due to tank or channel leakage, often caused by:

• Use of standard cementitious products not designed for constant wet/dry cycling
• Missed transitions between the structural shell and the tile bed
• Inadequate sealing around edge detailing
  According to a trade journal, “water‑tightness is another crucial factor when installing perimeter‑overflow gutters, because you can’t afford to have them leak.”

Select reinforced membranes, EPDM or PVC systems that explicitly list swimming pool/wet‑edge applications

Once hardscape materials are in place, it’s too late to correct the system elevations, especially across the entire 360° edge of the pool.

Most Common Mistakes in Perimeter Overflow Pool Construction

1. Improper Backflow Prevention

Without a check valve or air‑gap system, the pool can drain into the collector tank when the pump stops. This causes water loss, chemical imbalances, and stresses plumbing systems that are not designed for it.

2. Uneven Edge Tolerances

This system relies on perfect edge leveling. Even slight variations cause uneven flow, ruining the mirror effect. Aim for tolerances within 1/32 inch or less.

3. Undersized Surge Tank or Gutter

The surge tank must hold displaced water plus additional volume from rain or splash‑out. Undersized tanks or improperly sloped gutters cause overflow, flooding, and pump issues.

4. Undersized Plumbing, Noise, and Air/Vacuum Issues

Gravity‑fed return lines need oversized pipe diameters and proper venting. Pipes that are too small or run vertically create gurgling, flow restriction, and vacuum lock.

5. Higher Evaporation & Chemical Imbalance Challenges

The large surface area and constant movement of water increase evaporation significantly. This also accelerates chemical loss and requires more frequent rebalancing. A chemical automation system is highly recommended.

6. Deck Drainage, Splash‑Out, and Adjacent Water Damage

Decks not sloped toward the perimeter slot can allow water to puddle or run into landscaping or even building foundations. Slippery surfaces and erosion can follow.

7. Cleaning & Maintenance Oversights

With no skimmers, debris heads directly to the gutter or slot. Improper slot sizing or inaccessible grates make cleaning difficult. Gutters must also be cleaned regularly to avoid clogging and bacteria buildup.

8. Material and Craftsmanship Shortcuts

Any edge imperfection will ruin the visual effect. Using lower‑end materials or hiring inexperienced installers can cause warping, discoloration, or leakage.

Is a Perimeter Overflow Pool Right for You?

This pool type is ideal for:

• High‑end properties where design and aesthetic take priority
• Homeowners with the budget and space for a surge tank
• Minimalist and modern landscaping styles

It may not be ideal for:

• Homes with young children and heavy pool use
• Properties where space for surge tanks and plumbing is limited
• Projects where budget is a priority

Final Thoughts: If You Build It, Build It Right

Perimeter overflow pools are visually stunning, but only if the technical foundation behind them is sound. The extra cost is not just for show;  it’s required to maintain functionality and safety.

Don’t let poor planning or shortcut work undermine your investment.
